4-Way Cassette Fan Coil Unit SAF-CF1200

Brand
Suzuki
Model
SAF-CF1200

Description

  • Available in seven models with airflow rates ranging from 300 to 1,200 CFM.
  • Concealed ceiling-mount design for optimized space utilization, suitable for residential and commercial office environments.
  • Dual operation modes (Setting or Auto), four-way (one-way) airflow, high-velocity circulation, and multiple wind speed settings.
  • Molded one-piece shell for a professional appearance
  • The specialized insulation design ensures high thermal efficiency and prevents condensation on the shell.
  • Integrated high-lift drain pump for optimized water drainage, simplifying construction and installation.
  • Extended-life air filter with a service interval twice as long as standard filters, eliminating the need for routine maintenance.
  • The 3D helix air blade optimizes airflow, reduces unit thickness, and significantly lowers operational noise.
  • The plastic drip tray utilizes a combination of foam-PS and plastic construction. With a wall thickness of 1 mm, the design prevents leakage.
  • The integrated hook design facilitates efficient panel installation and removal.
  • Fresh air intake design delivers external air to maintain indoor air quality.
  • Auto-restart function
  • Standard remote controller and optional wired controller

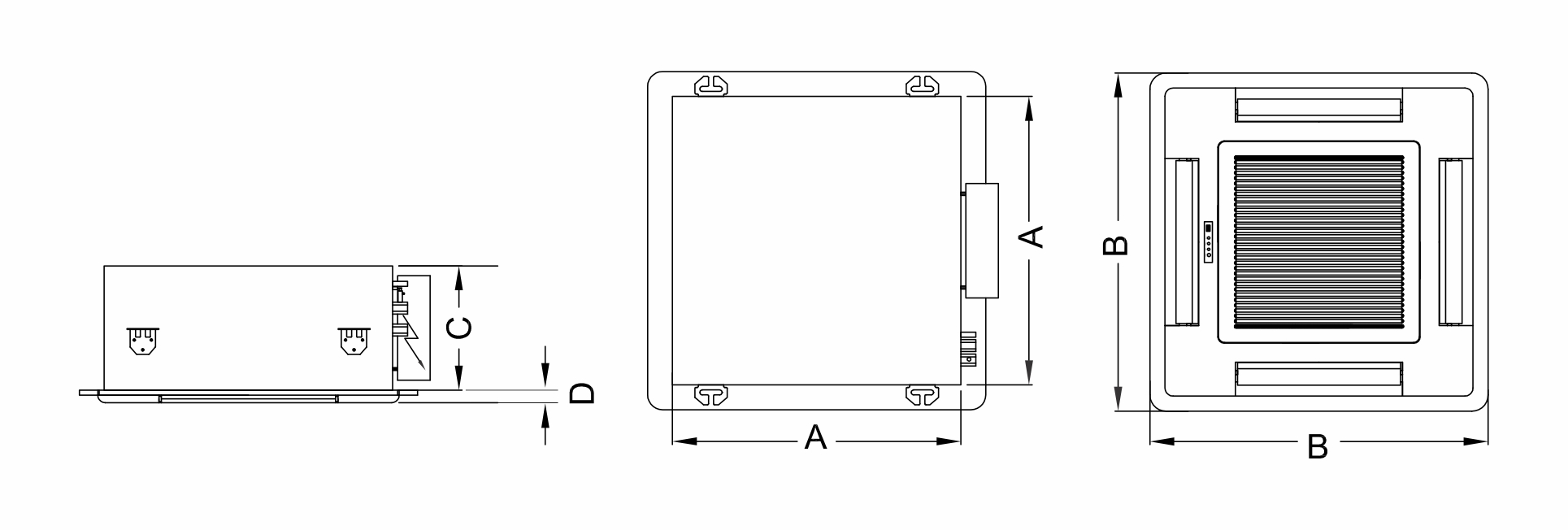

Technical schematic displaying side, front, and rear views of a square device with mounting brackets and a central cooling gr

Dimensions (mm)

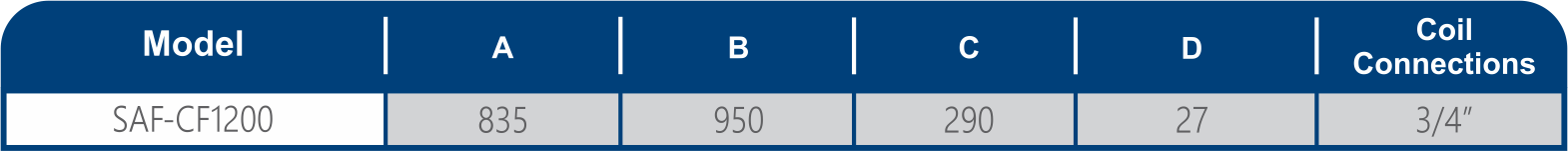

Technical data table for model SAF-CF1200 showing dimensions A, B, C, D and 3/4 inch coil connections.
