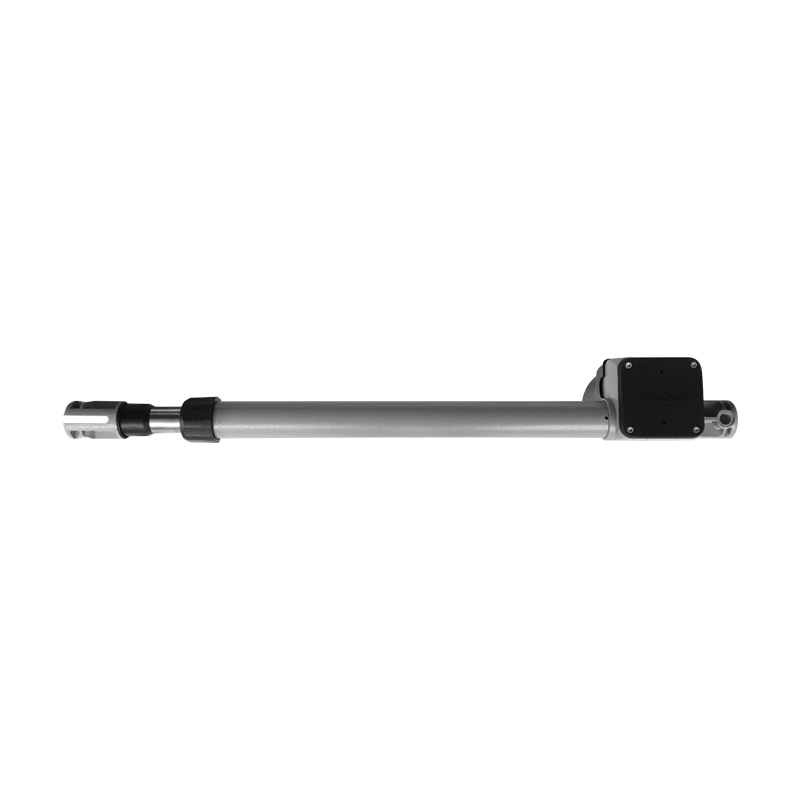

Silver metal shaft with black drive head and tip isolated on a white background

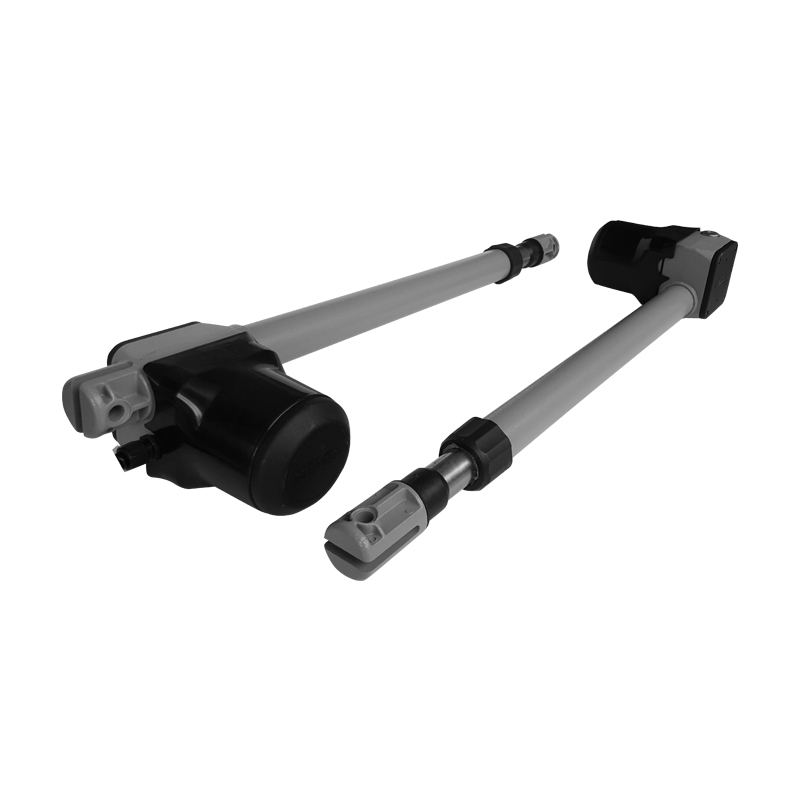

Two grey linear actuators with black motor housings and mounting brackets displayed against a white background.

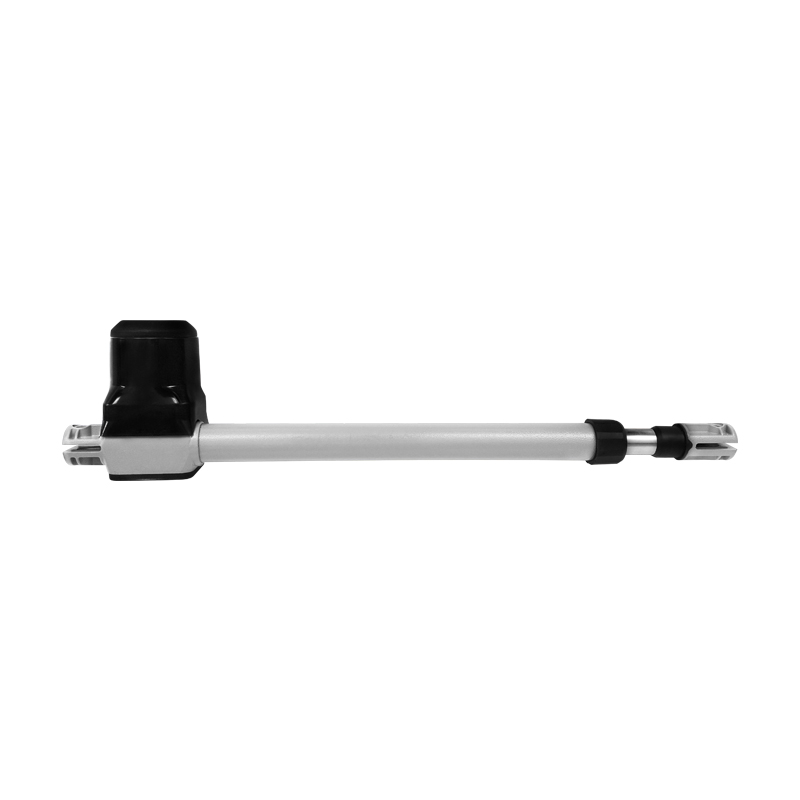

Side view of a silver linear actuator featuring a black control box and mounting points on either end.

Swing Gate Jack SZ-400

Brand
Suzuki
Model
SZ-400

Specifications

Power Supply
230V ~ 50Hz
Motor Power
280 W
Maximum Thrust
3000 N
Operating Temperature
-20° / +50°
Energy Consumption Group
A
Other Products
Rated for 40 cycles per hour.

Compatible with surface-mounted leaves up to 350kg and 2m in width.

Adjustable deceleration timing for opening and closing cycles.
