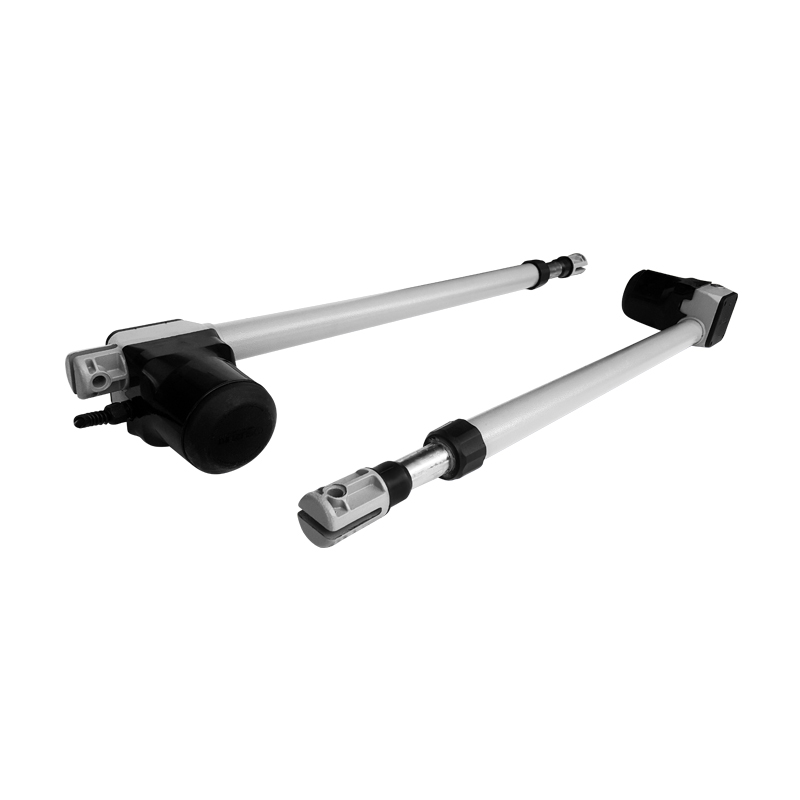

Two silver electric linear actuators with black motor housings and mounting brackets displayed against a white background.

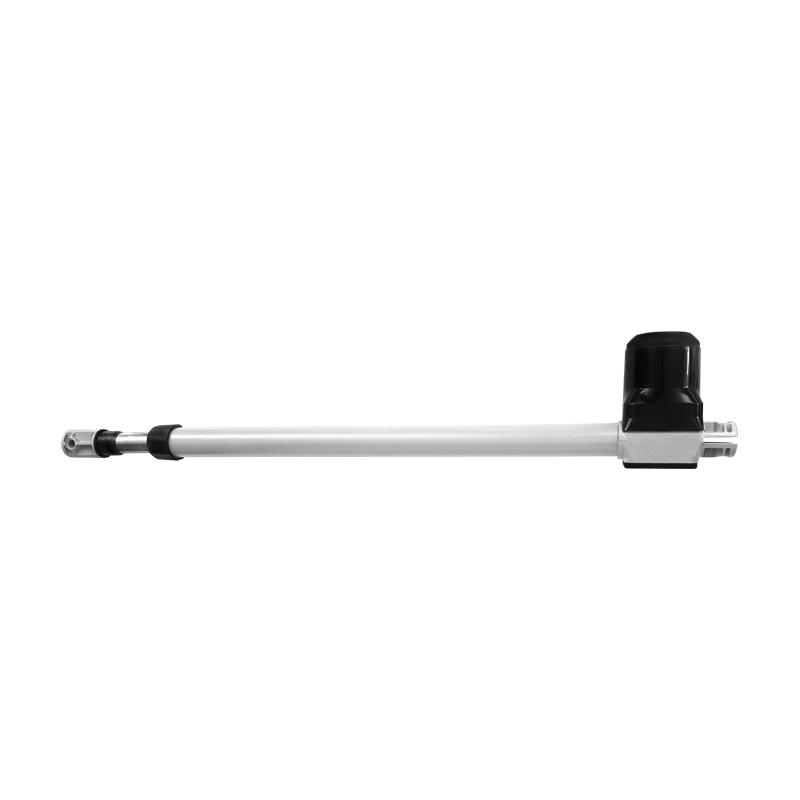

Side profile of a silver linear actuator with black rings near the tip and a black motor housing.

Swing Gate Actuator SZ-600

Brand
Suzuki
Model
SZ-600

Specifications

Power Supply
230V ~ 50Hz
Motor Power
280 W
Maximum Thrust
3000 N
Operating Temperature
-20° / +50°
Energy Efficiency Class
A
Other Products
Rated for 40 cycles per hour

Compatible with surface-mounted leaves up to 400kg and 2.5m in width

Adjustable deceleration timing for opening and closing cycles
