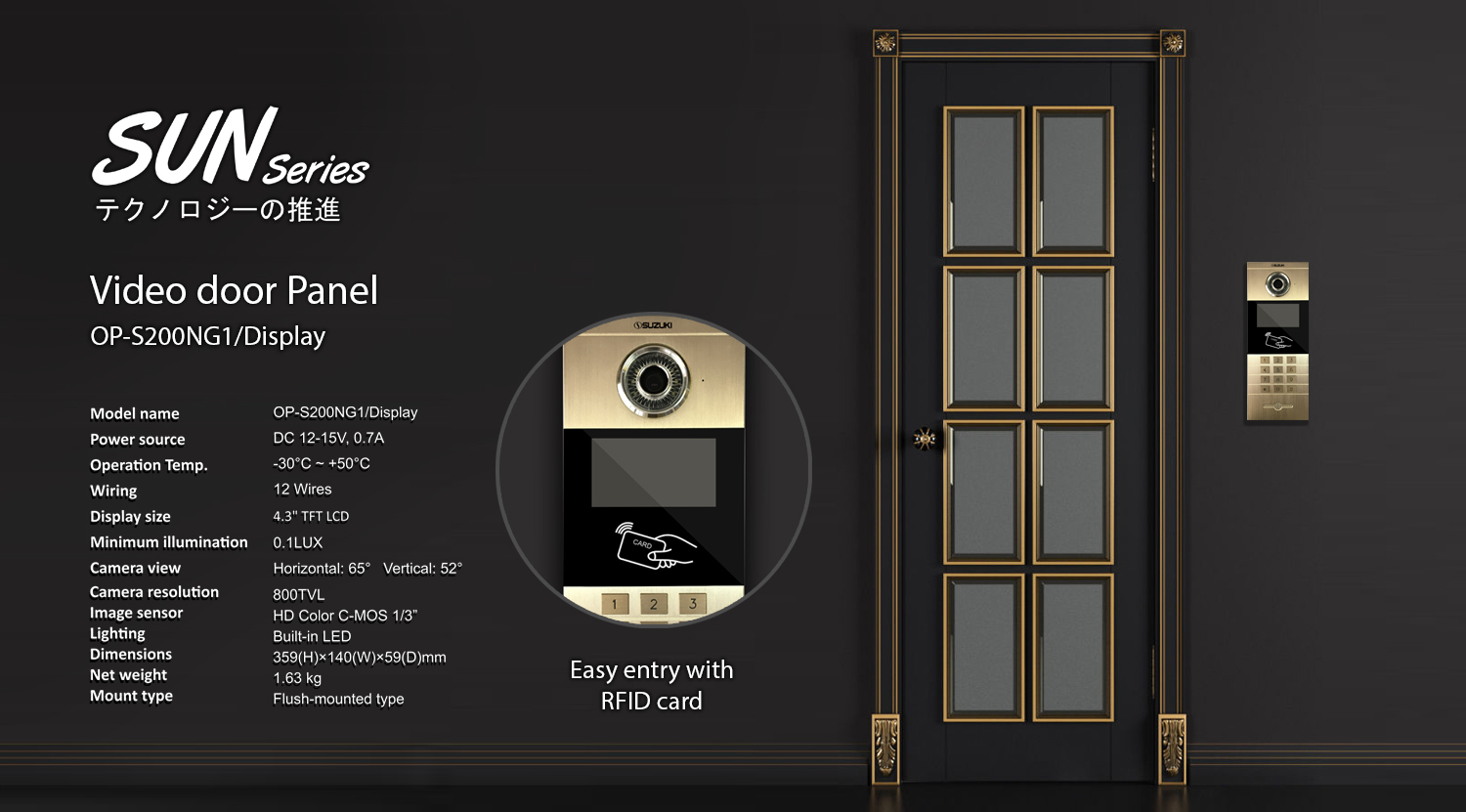

- Power Source
- Voltage: DC 12-15V, 0.7A
- Operating Temperature
- -30°C ~ +50°C
- Wiring
- 12 Wires
- Display Size
- 4.3" TFT LCD
- Camera View
- Horizontal: 65° Vertical: 52°
- Minimum Illumination
- 0.1 LUX
- Camera Resolution
- 800 TVL
- Image Sensor
- HD Color 1/3” C-MOS
- Lighting
- Integrated LED
- Dimensions (mm)
- 359*140*59mm
- Net Weight
- 1.63kg
- Mount Type
- Flush-mount type
- FUNCTION
- High-resolution image transmission via HD camera
Clear voice transmission
Professional industrial design
RFID card integration for streamlined entry
Support for up to 2,000 registered RFID cards
Expandable up to 200 units
4.3” TFT LCD display
Customizable unique name and code assignment for each unit
Speaker and microphone adjustment via panel settings
Suitable for installation and operation in diverse climates
LED-powered high-quality night vision
IP54-rated resistance to water and dust penetration
